Filament Yarn |
Polyester |
Polypropylene (PP) |
Polybutylene Terephthalate |
Glass fibre |
Aramid |
Viscose |
Sewing Thread |
Technical Yarns |
Polyamid |
Polyacry |
Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament. |
Synthetic fiber made from a thermoplastic polymer that contain the ester functional group in their main chain. Most commonly refers to a type called polyethylene terephthalate (PET) or polyethylene succinate (PES) with a melting point from 103 – 106°C. |
Polypropylene is a thermoplastic polymer used in a wide variety of applications including packaging and labeling, textiles (e.g., ropes, thermal underwear and carpets), stationery, plastic parts and reusable containers of various types, laboratory equipment, loudspeakers, automotive components, and polymer banknotes. An addition polymer made from the monomer propylene, it is rugged and unusually resistant to many chemical solvents, bases and acids. |
PBT is similar to other thermoplasic polyesters. Compared to PET, PBT has a slightly lower strenth and rigidity, but a better impact resistance. The yarn has a natural stretch and can be incorporated into sports wear (most common found in swimwear). |
Also called spun glass, is a material consisting of extremely fine filaments of glass that are combined in yarn and woven into fabrics. Used in making various products, such as yarns, fabrics, insulators, and structural objects or parts. |
Aramid is the short term for aromatic polyamide. They are fibres, in which the chain molecules are highly oriented along the fibre axis, so the strength of the chemical bond can be exploited. The fibre is heat-resistant and of great strength. Aramid is used in materials for bulletproof vests and radial tires. |
Viscose, formerly known as viscose rayon, is made by treating cellulose with caustic alkali solution and carbon disulphide. It is a soft fibre commonly used in dresses, linings, shirts, shorts, coats, jackets, and other outerwear. |
Sewing threads yarns are especially made to pass rapidly through a sewing machine. It is a fine cord of a fibrous material, made of two or more filaments twisted together. The yarn has to form efficient stitches without breaking or becoming distorted. |
The yarns are used for technical textile products, manufactured for non-aesthetic purposes, where function (rigidity, strength, dimension stability, design flexibility and economic viability) is the primary criterion. |
Also known as Nylon. PA consists of chemical fibres and are obtained from synthetic polymers. Polyamid is very resistant and tear proof as well as elastic, stretchable and takes just a little moisture up. In addition it is extensively crease-resistant and drip-dry. |
Synthetic fiber made from a polymer (Polyacrylonitrile, also known as Creslan61). PAN belongs to the family of acrylic resins. It is a hard, rigid thermoplastic material that is resistant to most solvents & chemicals, slow to burn and of low permeability to gases. |
Machine structure |
Double sides, single layer, thread manually |
Number of spindles |
10n, 100 spindles are standard |
Spindle gauge |
300mm |
Length of formed tube |
230mm |
Spindle speed range |
2500-11000r/min(According to different yarns) |
Twist range |
65-1000T/M(Need to be selected) |
Twist direction |
S or Z |
Spindle tensioner |
Ball type |
Traverse |
150mm-210mm(According to actual options) |
Rated power |
24KW |
Start-up mode |
Frequency conversion slow start |
Take-up angle |
0-30° |
Take-up speed |
Max.120m/min |
Take-up package |
Max.5kg |
Spindle drive |
Apron belt circulation drive |

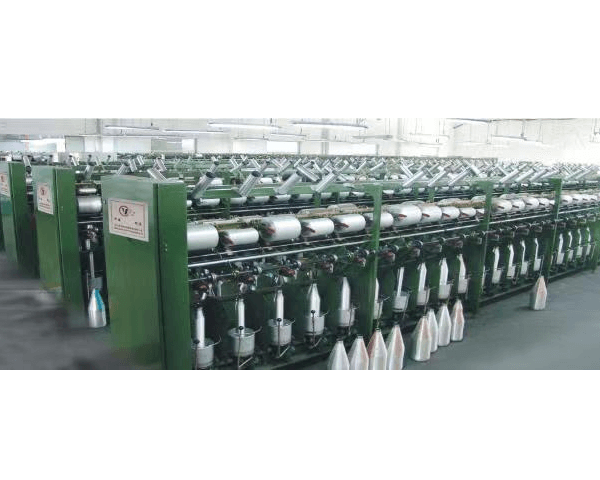

It is applied to make twisting of yarns in the high and medium TPM.
It is applied for making twist of single-ply and multiplied yarns of DTY, POY, FDY, viscose rayon etc in yarn count 45D-1000D.
FEATURES
◎A variety of spindles can be selected to suit the production of various specifications.
◎Short spindle gauge will be designed more spindle positions, to increase production capacity and also saving electricity;
◎Servo motor guide yarn forming and manual renegade spindle-braking system are easier to operate and extend the life of apron belt and spindle.
Zhejiang Kaicheng Intelligent Machinery Co.,Ltd. is a well-known China KC250C Two-for-one twisting machine for large package tube suppliers, national high-tech enterprise dedicated to manufacturing custom KC250C Two-for-one twisting machine for large package tube, and also researching, developing automation control software for high-end textile machinery.
Kaicheng insists on technological innovation as its core competitiveness of the enterprise.We focus on researches in the field of twisting and winding technology, and keep up with international level especially some famous brands from Europe.We are the best choice and replacement for European brands. Kaicheng products are being sold not only in China but are exported to Southeast Asia, West Asia and North- America , Central and South America, as well as Europe.
As a leading OEM/ODM KC250C Two-for-one twisting machine for large package tube machine, Kaicheng has set up full set of advanced processing equipment and technology research centers to take its research activities. Moreover, Kaicheng has established long-term cooperation relations with Donghua University, Wuhan Textile University and other universities; "Modern Textile Machinery Research Institute" and "Postgraduate Training Base" was co-established by Zhejiang Kaicheng Intelligent Machinery Co.,Ltd. & Zhejiang Sci-tech University in year of 2020.
Moreover, Kaicheng has passed the ISO9001:2015 quality management system certification by strictly fulfilling modern and standardizing production processes. It has obtained 242 national patent certificates including 12 invention patents; 15 products of Kaicheng have won the title of "provincial New products"; and also two technologies of automation control system developed independently by Kaicheng team in 2012 and 2015 respectively have reached currently international advanced level (The certificate number is 20110030 and 20160005 respectively).
With rich theoretical knowledge and practical experience in winder and twister machines, Kaicheng is devoted to building a leading Chinese brand of winding and twisting technology, to offering the most suitable yarn and machine solutions and also to creating more benefits and higher product values for our customers.
