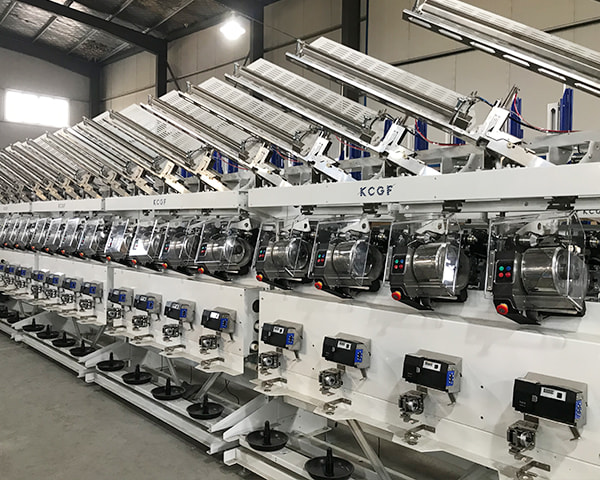

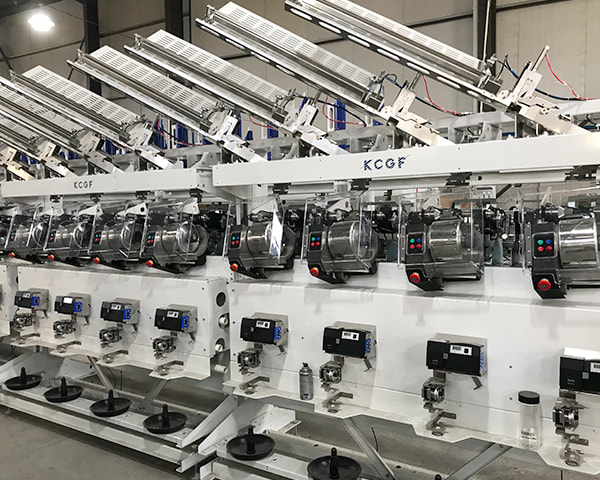

KC522A Automatic high-speed winder

product advantages:

Spun yarn


Sewing Thread

Textile yarn spun and twisted from staple length fiber, either natural or synthetic.

Natural fibre from the cotton plant which is spun into fine yarn.

Sewing threads yarns are especially made to pass rapidly through a sewing machine. It is a fine cord of a fibrous material, made of two or more filaments twisted together. The yarn has to form efficient stitches without breaking or becoming distorted.

contact us

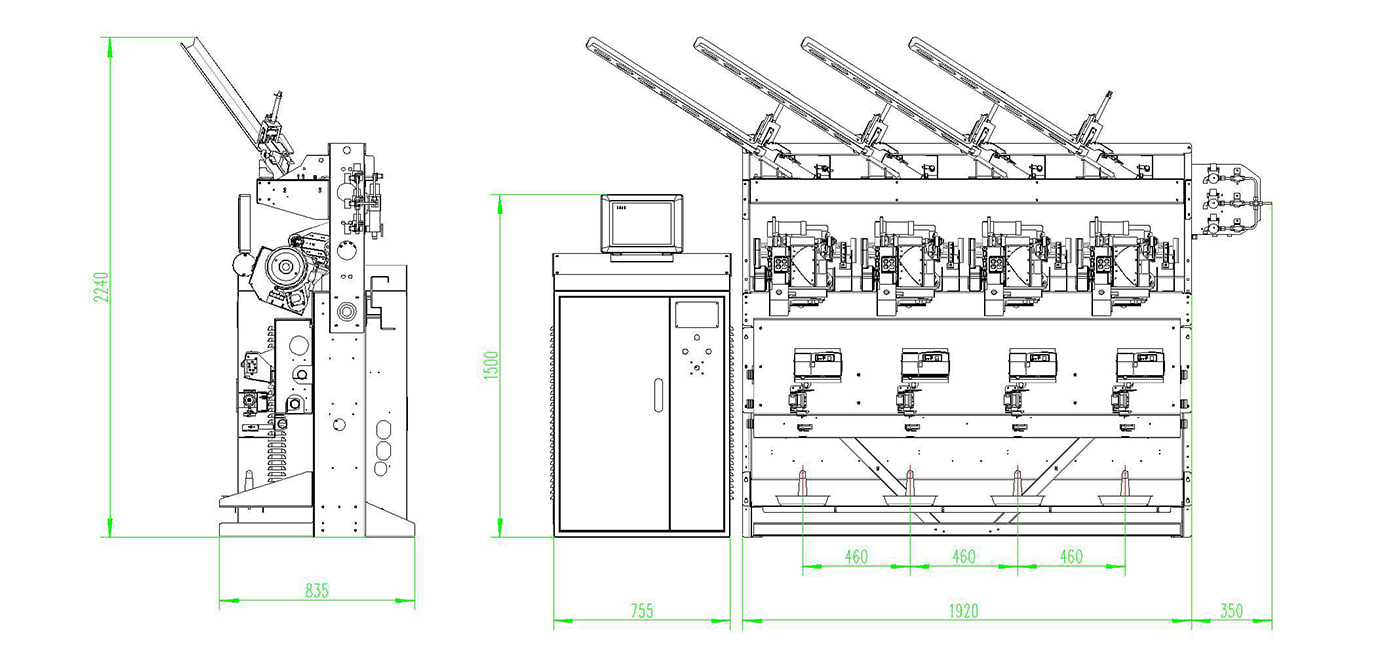

Machine structure

Single side,single layer

Spindle gauge


Min./Max.No.of spindles

4/20(Max.number of spindles per oil feeding system:20)

Type of winding

Precision cross winding

Take-up tubes

A tube:cones(cones with conicity from 3°30 to 5°57′;cylindrical or cone king spool up to 2°;tip diameter≥18mm )

Linear speed

Up to 1100m/min(depend to the process parameters)


76mm~152mm(±3.5mm, depend on the tank size, there are certain limitations)

Yarn count

Up to 3300D

Take-up package diameter

Up to 105mm

Supply package diameter

Up to 320mm

Rated power


Compression air



Used for A-tube, Y-tube( King-tube), cylinder tube production, be suitable for the production which need exchange a variety specifications of application.

Mainly suitable for winding of spun sewing thread、embroidery thread、corn spun、textured filament、industrial yarn、special yarn and etc.


Intelligent and constant temperature oil feeding device, can stop automatically when out-of oil or oil shortage , and can follow the leaner speed to change the amount of oil supply automatically, which achieve accurate refueling and perfect ensure the oil amount.

Feature model 1:Forming production of 2 inch cylinder tubes ,the diameter of tube (inner hole)

Feature model 2: Forming production of 2 inch Y-tubes;

Feature model 3: Electronic guide yarn forming production, can be adjusted at forming length, edge Angle in the required range;



Company Profile

Zhejiang Kaicheng Intelligent Machinery Co.,Ltd. is a well-known China KC522A Automatic high-speed winder suppliers, national high-tech enterprise dedicated to manufacturing custom KC522A Automatic high-speed winder, and also researching, developing automation control software for high-end textile machinery.

Kaicheng insists on technological innovation as its core competitiveness of the enterprise.We focus on researches in the field of twisting and winding technology, and keep up with international level especially some famous brands from Europe.We are the best choice and replacement for European brands. Kaicheng products are being sold not only in China but are exported to Southeast Asia, West Asia and North- America , Central and South America, as well as Europe.

As a leading OEM/ODM KC522A Automatic high-speed winder machine, Kaicheng has set up full set of advanced processing equipment and technology research centers to take its research activities. Moreover, Kaicheng has established long-term cooperation relations with Donghua University, Wuhan Textile University and other universities; "Modern Textile Machinery Research Institute" and "Postgraduate Training Base" was co-established by Zhejiang Kaicheng Intelligent Machinery Co.,Ltd. & Zhejiang Sci-tech University in year of 2020.

Moreover, Kaicheng has passed the ISO9001:2015 quality management system certification by strictly fulfilling modern and standardizing production processes. It has obtained 242 national patent certificates including 12 invention patents; 15 products of Kaicheng have won the title of "provincial New products"; and also two technologies of automation control system developed independently by Kaicheng team in 2012 and 2015 respectively have reached currently international advanced level (The certificate number is 20110030 and 20160005 respectively).

With rich theoretical knowledge and practical experience in winder and twister machines, Kaicheng is devoted to building a leading Chinese brand of winding and twisting technology, to offering the most suitable yarn and machine solutions and also to creating more benefits and higher product values for our customers.
