KC228 High speed precision skeining machine

product advantages:


Also known as Nylon. PA consists of chemical fibres and are obtained from synthetic polymers. Polyamid is very resistant and tear proof as well as elastic, stretchable and takes just a little moisture up. In addition it is extensively crease-resistant and drip-dry.

contact us



Machine structure

Single size, single layer,4spindles per section

Type of winding

Precision winding

Spindle gauge



Single motor drive

Number of spindle

40 spindles/set

Leaner speed

Up to 1600m/min(depend on the process parameters)


130mm-250mm(It can be changed according to actual situation)

Rated power


Winding density

Intelligent setting



It is suitable for precision forming of elastic chemical fibers ,like polyester, chinlon  and so on, especially for precision forming of fine denier yarns.


◎Adoption of electronic yarn guide forming system, forming length is adjustable electronically ,  and the uniformity  of forming  density for reeled yarns can be guaranteed.

◎Adoption of digital programmable intelligent control ,yarns can be winded at a high speed and formed precisely at same time.

◎Intelligent constant tension system and  automatic tracking system of over feeding can be chosen, so that the stability of yarn forming can be guaranteed.

◎Equipped with single spindle operation control, yarns can be loaded and  unloaded  freely.  It is convenient to operate with  reasonable transmission, compact struture, beautiful appearance.

◎Each spindle of the whole machine is drove by independent brushless DC motor, Productivity is improved , power consumption is reduced at same time ,  more than 30%  power is saved compared to similar ma chines.



Company Profile

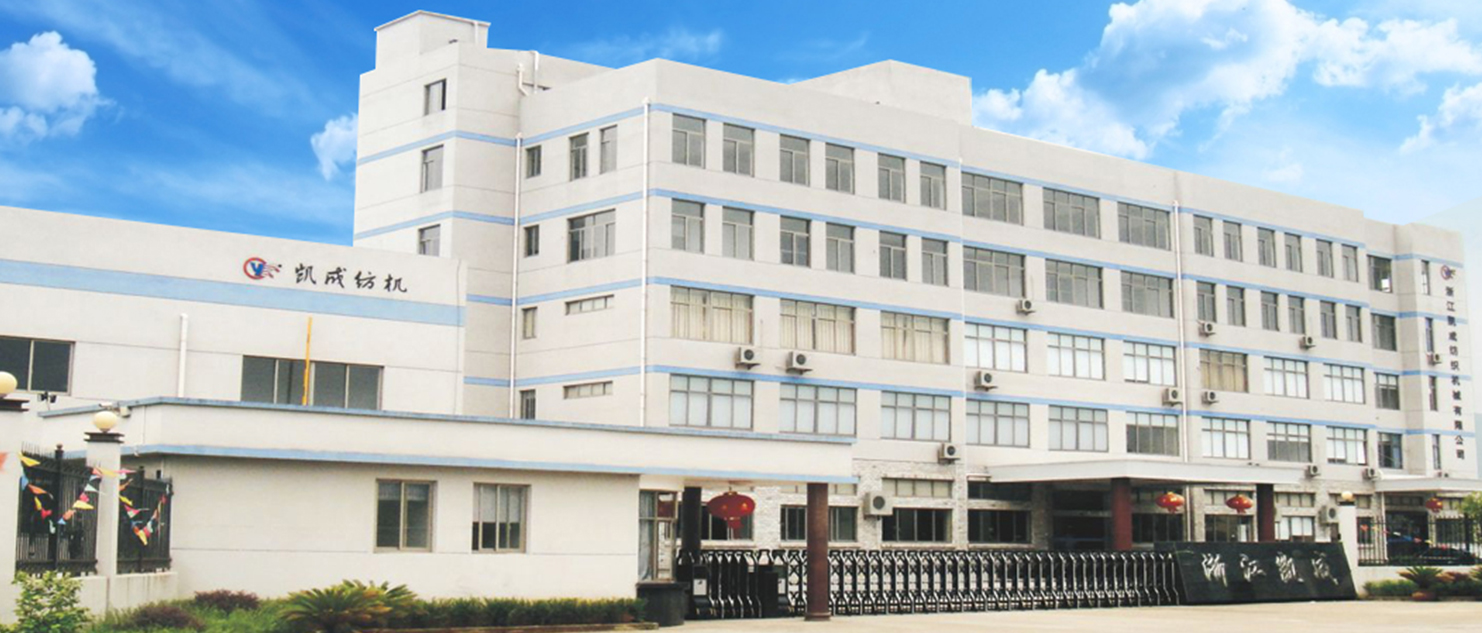

Zhejiang Kaicheng Intelligent Machinery Co.,Ltd. is a well-known China KC228 High speed precision skeining machine suppliers, national high-tech enterprise dedicated to manufacturing custom KC228 High speed precision skeining machine, and also researching, developing automation control software for high-end textile machinery.

Kaicheng insists on technological innovation as its core competitiveness of the enterprise.We focus on researches in the field of twisting and winding technology, and keep up with international level especially some famous brands from Europe.We are the best choice and replacement for European brands. Kaicheng products are being sold not only in China but are exported to Southeast Asia, West Asia and North- America , Central and South America, as well as Europe.

As a leading OEM/ODM KC228 High speed precision skeining machine machine, Kaicheng has set up full set of advanced processing equipment and technology research centers to take its research activities. Moreover, Kaicheng has established long-term cooperation relations with Donghua University, Wuhan Textile University and other universities; "Modern Textile Machinery Research Institute" and "Postgraduate Training Base" was co-established by Zhejiang Kaicheng Intelligent Machinery Co.,Ltd. & Zhejiang Sci-tech University in year of 2020.

Moreover, Kaicheng has passed the ISO9001:2015 quality management system certification by strictly fulfilling modern and standardizing production processes. It has obtained 242 national patent certificates including 12 invention patents; 15 products of Kaicheng have won the title of "provincial New products"; and also two technologies of automation control system developed independently by Kaicheng team in 2012 and 2015 respectively have reached currently international advanced level (The certificate number is 20110030 and 20160005 respectively).

With rich theoretical knowledge and practical experience in winder and twister machines, Kaicheng is devoted to building a leading Chinese brand of winding and twisting technology, to offering the most suitable yarn and machine solutions and also to creating more benefits and higher product values for our customers.
