KC215C Air texturing machine Manufacturers

Home / Products / AIR TEXTURING MACHINE / KC215C Air texturing machine

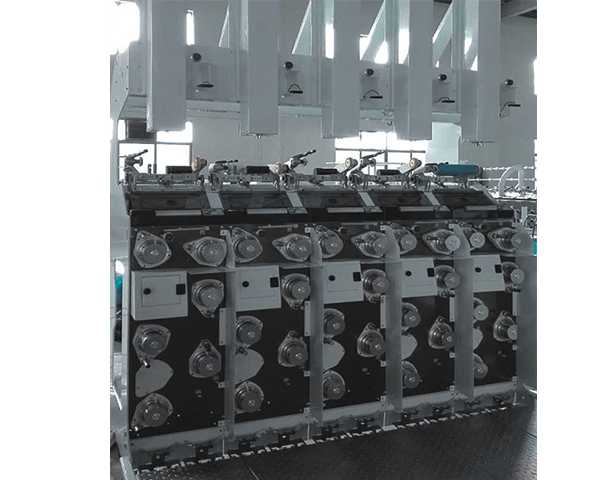

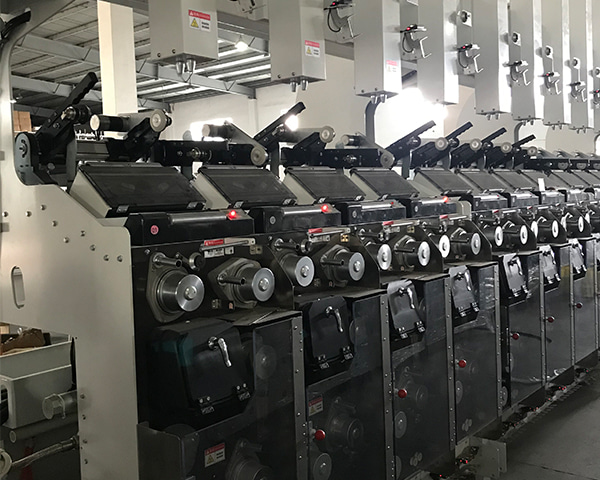

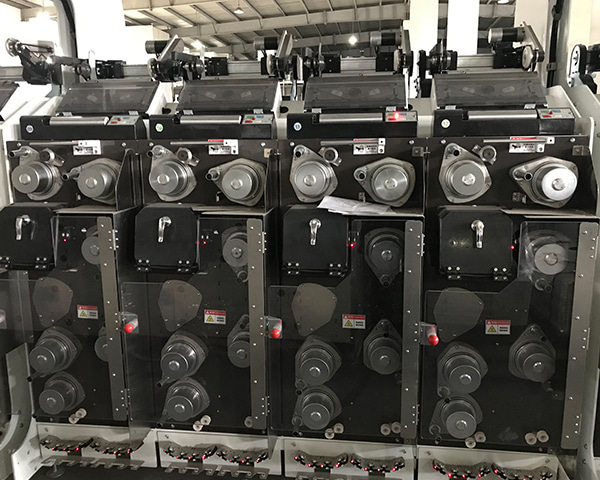

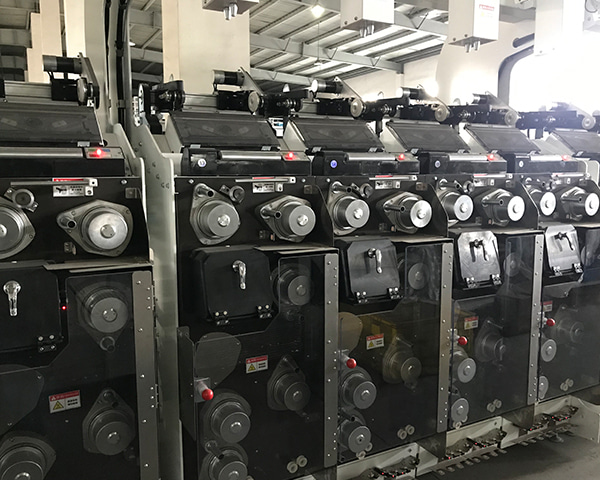

KC215C Air texturing machine

product advantages:

Spun yarn

Filament Yarn




Polypropylene (PP)

Polybutylene Terephthalate

Glass fibre



Sewing Thread

Technical Yarns

Drawn Textured Yarn



Textile yarn spun and twisted from staple length fiber, either natural or synthetic.

Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.

Natural fibre from the cotton plant which is spun into fine yarn.

Animal fibre; most commonly used to mean the yarn spun from the sheep.

Synthetic fiber made from a thermoplastic polymer that contain the ester functional group in their main chain. Most commonly refers to a type called polyethylene terephthalate (PET) or polyethylene succinate (PES) with a melting point from 103 – 106°C.

Polypropylene is a thermoplastic polymer used in a wide variety of applications including packaging and labeling, textiles (e.g., ropes, thermal underwear and carpets), stationery, plastic parts and reusable containers of various types, laboratory equipment, loudspeakers, automotive components, and polymer banknotes. An addition polymer made from the monomer propylene, it is rugged and unusually resistant to many chemical solvents, bases and acids.

PBT is similar to other thermoplasic polyesters. Compared to PET, PBT has a slightly lower strenth and rigidity, but a better impact resistance. The yarn has a natural stretch and can be incorporated into sports wear (most common found in swimwear).

Also called spun glass, is a material consisting of extremely fine filaments of glass that are combined in yarn and woven into fabrics. Used in making various products, such as yarns, fabrics, insulators, and structural objects or parts.

Aramid is the short term for aromatic polyamide. They are fibres, in which the chain molecules are highly oriented along the fibre axis, so the strength of the chemical bond can be exploited. The fibre is heat-resistant and of great strength. Aramid is used in materials for bulletproof vests and radial tires.

Elastane or Spandex is a polyurethane-polyurea copolymer. This synthetic fibre can be stretched from four to seven times their length, reverting to their original length when the tension is relaxed. Used for all areas where a high degree of permanent elasticity is required: hosiery, underwear, sportswear, and in woven and knitted fabrics.

Sewing threads yarns are especially made to pass rapidly through a sewing machine. It is a fine cord of a fibrous material, made of two or more filaments twisted together. The yarn has to form efficient stitches without breaking or becoming distorted.

The yarns are used for technical textile products, manufactured for non-aesthetic purposes, where function (rigidity, strength, dimension stability, design flexibility and economic viability) is the primary criterion.

Made from Polyester POY by simultaneously twisting & drawing. DTY yarn is mainly used in weaving and knitting.

Also known as Nylon. PA consists of chemical fibres and are obtained from synthetic polymers. Polyamid is very resistant and tear proof as well as elastic, stretchable and takes just a little moisture up. In addition it is extensively crease-resistant and drip-dry.

Synthetic fiber made from a polymer (Polyacrylonitrile, also known as Creslan61). PAN belongs to the family of acrylic resins. It is a hard, rigid thermoplastic material that is resistant to most solvents & chemicals, slow to burn and of low permeability to gases.

contact us



Machine structure

Single size, single layer,4spindles per sections,40spindles/set

Spindle gauge


Type of winding

Digital winding or precision winding

Leaner speed

Up to 1100m/min(depend on the process parameters)


130mm-250mm(It can be changed according to actual situation)

Package shape

Straight edge or incline edge shape(The angle can be adjustable)

Take-up tube

290 cylinder cone

Rated power

About 6.85 KW

Yarn count

Up to 3300D

Compression air

8-12Pa(depend on the process parameters)


Applied for FDY、POY、DTY yarn texturing, to meet air texturing (ATY) requirement.


◎Digital hot roll and high precision shaping box temperature control , ensure  the quality of the yarn production.

◎Using high ~ performance motor yarn guide system, realize intelligent forming and line speed winding.

◎Intelligent synchronous driving, promise the roller wheel and winding consistency, ensure stable and reliable of production.

◎Intelligent automatic control technology , ensure accurate control of winding density. At the same time, ensure the continuity of production, greatly improve production efficiency, reduce labor costs, reduce yarn waste.



Company Profile

Zhejiang Kaicheng Intelligent Machinery Co.,Ltd. is a well-known China air texturing machines manufacturers, national high-tech enterprise dedicated to manufacturing custom air texturing machines, and also researching, developing automation control software for high-end textile machinery.

Kaicheng insists on technological innovation as its core competitiveness of the enterprise.We focus on researches in the field of twisting and winding technology, and keep up with international level especially some famous brands from Europe.We are the best choice and replacement for European brands. Kaicheng products are being sold not only in China but are exported to Southeast Asia, West Asia and North- America , Central and South America, as well as Europe.

As a leading OEM/ODM air texturing machines machine, Kaicheng has set up full set of advanced processing equipment and technology research centers to take its research activities. Moreover, Kaicheng has established long-term cooperation relations with Donghua University, Wuhan Textile University and other universities; "Modern Textile Machinery Research Institute" and "Postgraduate Training Base" was co-established by Zhejiang Kaicheng Intelligent Machinery Co.,Ltd. & Zhejiang Sci-tech University in year of 2020.

Moreover, Kaicheng has passed the ISO9001:2015 quality management system certification by strictly fulfilling modern and standardizing production processes. It has obtained 242 national patent certificates including 12 invention patents; 15 products of Kaicheng have won the title of "provincial New products"; and also two technologies of automation control system developed independently by Kaicheng team in 2012 and 2015 respectively have reached currently international advanced level (The certificate number is 20110030 and 20160005 respectively).

With rich theoretical knowledge and practical experience in winder and twister machines, Kaicheng is devoted to building a leading Chinese brand of winding and twisting technology, to offering the most suitable yarn and machine solutions and also to creating more benefits and higher product values for our customers.
